Description
-
- 3.0 HP DC Brushless Drive Motor
- 18″ Custom Molded Soft Touch w/27“ Spacing
- 0.5 – 11 mph speed, 0% – 15% incline
- 20″W x 59L” Walking Belt
- 350 lbs user weight capacity
- Choice of Touch LED or 16″ Smart Touchscreen
- 79″L x 35″W x 60″H
- Learn more below…
The BODYCRAFT T500 Treadmill combines innovative engineering with sophisticated design to cater to both novice fitness enthusiasts and advanced athletes. Each & every BODYCRAFT treadmill is quality ensured using a rigorous, multi-stage 28 point inspection process with a 99 minute running test. This treadmill features a robust 3HP DC Motor and a sturdy frame that supports users up to 350 LBS, offering exceptional durability and performance. The T500 boasts a spacious 20″ x 59″ running surface and a versatile speed range from 0.5 to 11 mph, with an incline adjustable from 0% to 15% in 0.5% increments. Choose from interchangeable EXP Series Consoles (the First GMS Certified (opens in new tab)Consoles in the Industry), including a 16″ Smart Touchscreen or a Touch LED console, to suit your preferences. Additional features include heart rate hand pulse grips, an oversized emergency stop button, dual position hand rails, and the BODYCRAFT CONNECT Module for seamless app integration with your smartphone or tablet.
SMOOTH OPERATOR
Experience Smooth, Quiet Power with the Advanced Brushless DC Motor.
Designed for Higher Efficiency, Longer Lifespan, and Low Maintenance.
By Eliminating Brushes and Commutators, It Reduces Friction, Noise,
and Sparking, Delivering Reliable & Precise Performance.

IMPACTING YOUR LIFE
Our Advanced Cloud 8 (C8) Pairs 8 Variable Shock Absorbers with Constant
Speed Control (CSC) to Deliver Exceptional Impact Protection and Consistent
Performance. Every Step Feels Smooth, Comfortable, and Perfectly Balanced
for Energy Return.

Console options allow you to choose your workout experience!

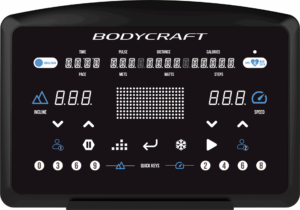

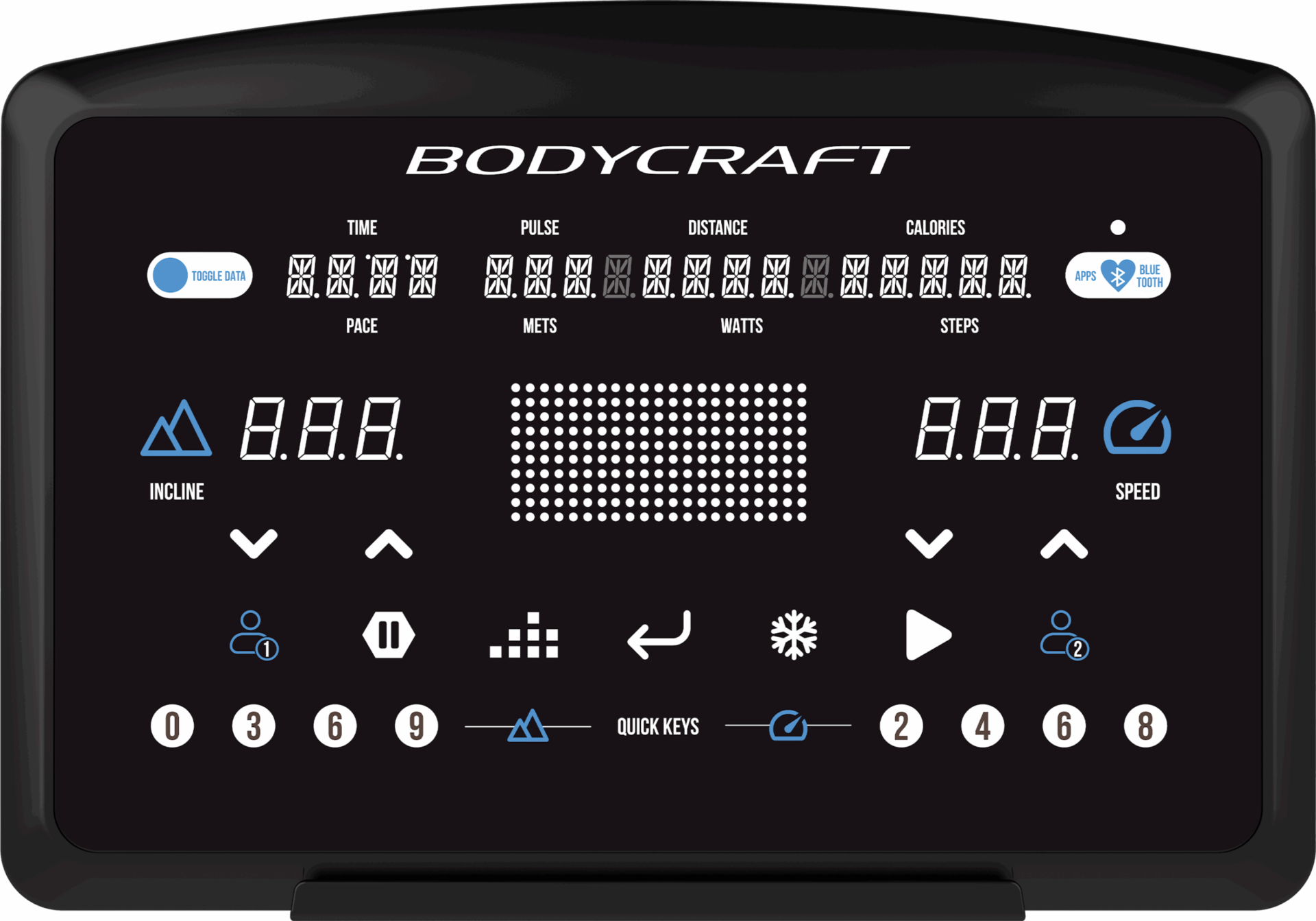

Touch LED –

—TOUCH LED—
Display: LED Interactive Computer w/moisture-blocking, one-piece acrylic overlay
Feedback: Displays Speed, Time, Incline, Calories, Pulse, METS, Distance, Pace, Watts, Steps
Programs: Quick Start, Manual/ Goal, Hill Climb, Easy Jog, Speed Interval, HIIT, 5K, Target HR, w/ Cool Down feature

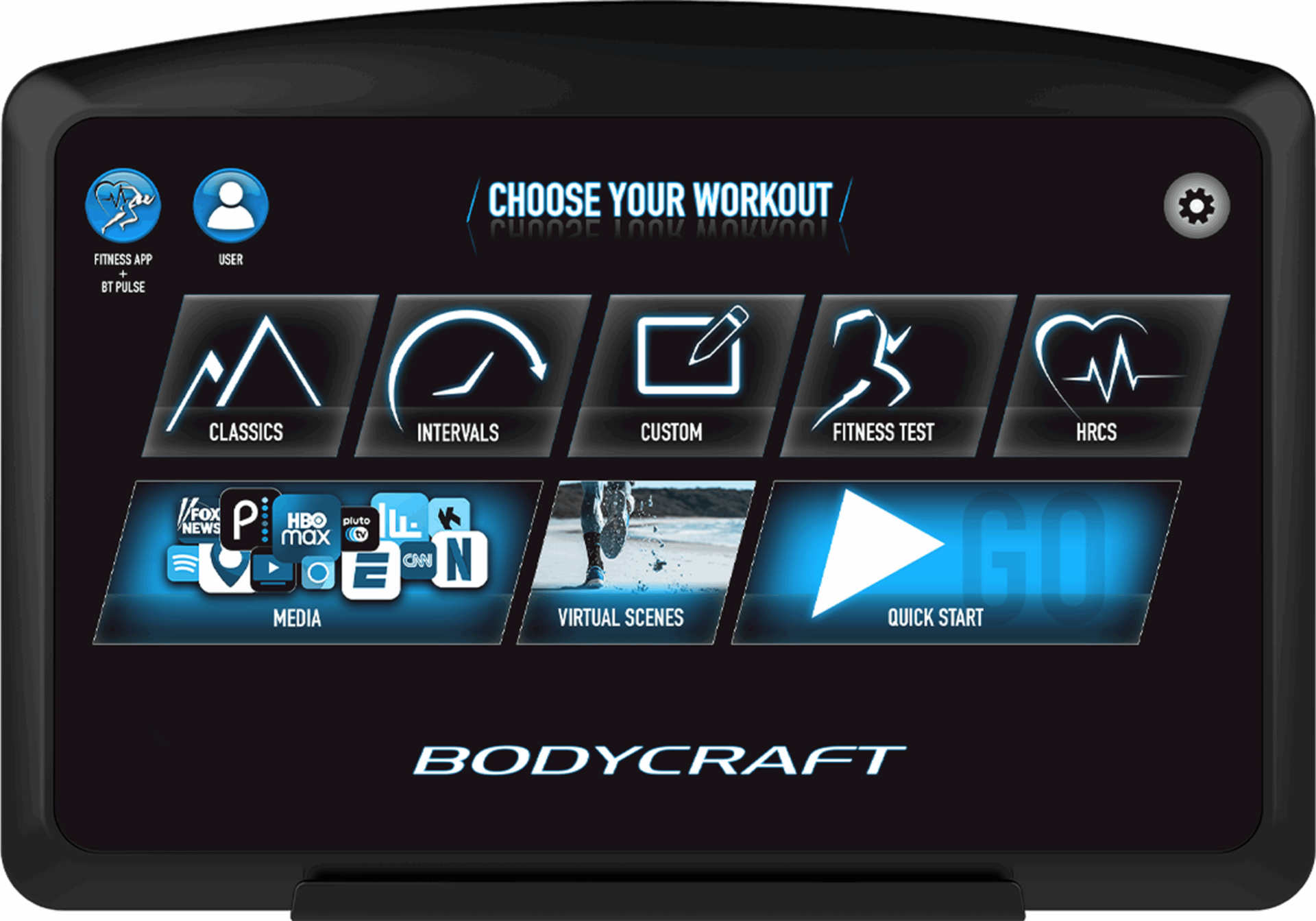

16″ – Smart Touchscreen
—SMART TOUCHSCREEN—

Display: Full Color Touchscreen w/fitness programs & entertainment apps
Feedback: User Defined
Programs: Quick Start, Classics (Goal, Custom, Hill, Run, Walk, Sprint, Climb Landmarks), Intervals (Incline, Speed, HIIT, Custom), HRC’s (Target, Interval, Fat Burn, Cardio), Races (5K, 10K, Half Marathon) Fitness Tests, Custom
Apps/Media: Chrome, Youtube, Netix, Hulu, Prime Video, Disney+, Kinomap, Fitscope, Youtube TV, ESPN, Fox News, CNN, Max, Fitradio, Spotify, PlutoTV, Screen Mirroring, TV/HDMI, USB Music MP3, USB Video MP4.
HDMI: Input
Virtual Scenes: Forests, Beaches, Tropics, Mountains
Language: English, French, Spanish, or Chinese
Specs
Power: 120V – 15 Amp Dedicated Circuit Recommended
Motor: 3.0 HP DC Brushless Drive Motor
Rollers: 2″ Diameter Crowned Rollers w/ Sealed Bearings
Speed: 0.5 to 11 MPH
Incline: 0% to 15%
Dimensions: 79″L x 35″W x 60″H
Weight: 239 LBS
Max User: 350 LBS
Frame: Heavy Duty Steel & Aluminum
Deck: Non-Reversible 1″ Thick
Belt: 20″W x 59L”
Lubrication: Silicone Base, Regular Maintenance
Stability: Self Leveling Stabilizer Feet
Mobility: Built-In Transport Wheels
Warranty
- RESIDENTIAL: Frame: Lifetime, Parts: 10 years, Display: 3 years, Labor: 2 years.
